Part # (PDF Files) |
VRRM | IT(AV) | ITSM | I2T | IGT | VGT | VTM | Rth(j-c) | RoHS Compliance |
|

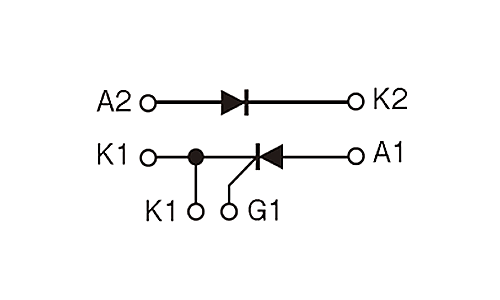

(V) | (A) | (°C) | A(60Hz) | (A2S) | mA(125°C) | V(25°C) | V(25°C) | (°C / W) | ||
PK(PD)55FG80 | 800 | 55 | 81 | 1300 | 7040 | 50 | 3 | 1.6 | 0.5 | Yes |
PK(PD)55FG160 | 1600 | 55 | 81 | 1300 | 7040 | 50 | 3 | 1.6 | 0.5 | Yes |
PK(PD)70FG80 | 800 | 70 | 84 | 1600 | 10660 | 50 | 3 | 1.6 | 0.37 | Yes |
PK(PD)70FG160 | 1600 | 70 | 84 | 1600 | 10660 | 50 | 3 | 1.6 | 0.37 | Yes |
PK(PD)90FG80 | 800 | 90 | 82 | 2300 | 22040 | 50 | 3 | 1.6 | 0.3 | Yes |
PK(PD)90FG160 | 1600 | 90 | 82 | 2300 | 22040 | 50 | 3 | 1.6 | 0.3 | Yes |
PK(PD)110FG80 | 800 | 110 | 81 | 3000 | 37500 | 50 | 3 | 1.6 | 0.25 | Yes |
PK(PD)110FG160 | 1600 | 110 | 81 | 3000 | 37500 | 50 | 3 | 1.6 | 0.25 | Yes |
PK(PD)130FG80 | 800 | 130 | 83 | 3500 | 51040 | 50 | 3 | 1.6 | 0.2 | Yes |
PK(PD)130FG160 | 1600 | 130 | 83 | 3500 | 51040 | 50 | 3 | 1.6 | 0.2 | Yes |
PK(PD)160FG80 | 800 | 160 | 84 | 5400 | 125000 | 100 | 3 | 1.5 | 0.18 | Yes |
PK(PD)160FG160 | 1600 | 160 | 84 | 5400 | 125000 | 100 | 3 | 1.5 | 0.18 | Yes |
PK(PD)200FG80 | 800 | 200 | 73 | 6500 | 180000 | 100 | 3 | 1.5 | 0.167 | Yes |
PK(PD)200FG160 | 1600 | 200 | 73 | 6500 | 180000 | 100 | 3 | 1.5 | 0.167 | Yes |
PK(PD)25GB80 | 800 | 25 | 97 | 500 | 1000 | 50 | 3 | 1.5 | 0.8 | Yes |
PK(PD)25HB160 | 1600 | 25 | 94 | 500 | 1000 | 50 | 2 | 1.6 | 0.8 | Yes |
PK(PD)55GB80 | 800 | 55 | 89 | 1100 | 5000 | 100 | 3 | 1.35 | 0.5 | Yes |
PK(PD)55HB160 | 1600 | 55 | 85 | 1100 | 5000 | 100 | 2 | 1.5 | 0.5 | Yes |
PK(PD)90GB80 | 800 | 90 | 91 | 1800 | 15000 | 100 | 3 | 1.3 | 0.3 | Yes |
PK(PD)90HB160 | 1600 | 90 | 88 | 1800 | 15000 | 100 | 2 | 1.4 | 0.3 | Yes |
PK(PD)200GB80 | 800 | 200 | 74 | 5500 | 1.25×105 | 100 | 3 | 1.5 | 0.18 | Yes |
PK(PD)200HB160 | 1600 | 200 | 74 | 5500 | 1.25×105 | 100 | 3 | 1.5 | 0.18 | Yes |
PK(PD)250GB80 | 800 | 250 | 72 | 5500 | 1.25×105 | 100 | 3 | 1.6 | 0.14 | Yes |
PK(PD)250HB160 | 1600 | 250 | 72 | 5500 | 1.25×105 | 100 | 3 | 1.6 | 0.14 | Yes |
SBA500AA80 | 800 | 500 | 66 | 10000 | 4.16×105 | 200 | 3 | 1.45 | 0.085 | Yes |
SBA500AA120 | 1200 | 500 | 66 | 10000 | 4.16×105 | 200 | 3 | 1.45 | 0.085 | Yes |
SBA500AA160 | 1600 | 500 | 66 | 10000 | 4.16×105 | 200 | 3 | 1.45 | 0.085 | Yes |
SSA500AA80 | 800 | 500 | 66 | 10000 | 4.16×105 | 200 | 3 | 1.45 | 0.085 | Yes |
SSA500AA120 | 1200 | 500 | 66 | 10000 | 4.16×105 | 200 | 3 | 1.45 | 0.085 | Yes |
SSA500AA160 | 1600 | 500 | 66 | 10000 | 4.16×105 | 200 | 3 | 1.45 | 0.085 | Yes |
PK(PD)25FG80 | 800 | 25 | 81 | 700 | 2870 | 50 | 3 | 1.6 | 1.1 | Yes |
PK(PD)25FG160 | 1600 | 25 | 81 | 700 | 2870 | 50 | 3 | 1.6 | 1.1 | Yes |
PK(PD)40FG80 | 800 | 40 | 83 | 950 | 3760 | 50 | 3 | 1.6 | 0.65 | Yes |
PK(PD)40FG160 | 1600 | 40 | 83 | 950 | 3760 | 50 | 3 | 1.6 | 0.65 | Yes |
SCE110AB160 | 1600 | 110 | 89 | 2300 | 22000 | 150 | 3.2 | 2 | 0.25 | Yes |
